ATMEL AVR MICROCONTROLLER:

• 128KB FLASH
• 4 KB RAM
• 4 KB EEPROM
• 53 I/O pins
• hardware multiplier
• Programming Lock for Software Security
• SPI Interface for In-System Programming
• Real Time Counter with Separate Oscillator
• 8-channel, 10-bit ADC:
  - 8 Single-ended Channels
  - 7 Differential Channels
  - 2 Differential Channels with Programmable Gain at 1x, 10x, or 200x
• Dual Programmable Serial USARTs (2x UART)
•  Master/Slave SPI Serial Interface
• 2x 8bit Timer, 2x 16bit Timer
• 16MHz RISC

ATmega128 TinyBoard Ver1.1

ATmega128 Development Board with ATmega128-16AI (16 MHz)

• super thin only 34mm x 40mm x 8mm

• full motherboard for ATmega128

• all pins are available on headers (2,54mm-/0,1" pitch), 2x15pins each

• high computing power

• easy to use: just connect to power supply (+5V) and program device

• separate grounds: analog and digital

• extra shielded

• ISP programming pins on right header

fully assembled board  includes:

• ATmega128-16AI (-40 bis +85°C), X1 crystal 16 MHz, X2 crystal 32kHz (for asynchron timer)

• header layout, schematics, programming tutorial

•  female connectors 2 pieces (2x15 pins) also available

ATmega128 TinyBoard Ver1.2

ATmega128 Development Board with ATmega128-16AI (16 MHz) with ISP Header

• same dimensions as Vers1.1 but with additional ISP header

• automatically switches off lines on right header when in programming mode (prohibits "shortages" during programming with the rest of circuitry)

• led indicates programming mode

• 100% pin compatible with Ver1.1

• super thin only 34mm x 40mm x 8mm

• full motherboard for ATmega128

• all pins are available on headers (2,54mm-/0,1" pitch) 2x15pins each

• high computing power

• easy to use: just connect to power supply (+5V) and program device

• separate grounds: analog and digital

• extra shielded



• fully assembled board  includes:

• ATmega128-16AI (-40 bis +85°C), X1 crystal 16 MHz, X2 crystal 32kHz (for asynchron timer)

• header layout, schematics, programming tutorial

• female connectors 2 pieces (2x15 pins) are also available

Atmel ISP Programmer

Atmel ISP Programmer for parallel port ( STK200 / 300 compatible )

• used for progamming of ATmega128 TinyBoard or any other ISP programmable controller from Atmel
• 100% compatible with Atmel STK200/300
• works with:

• free available software: PonyProg or  AVRDUDE
  and  CodeVisionAVR, BASCOM-AVR, Yaap

• long ribbon cable
• chip inside

• Atmel AVR Studio 4 from www.atmel.com
• free C-Compiler AVR-GCC from AVR Freaks Web Site
• Basic compiler BASCOM-AVR
• Open Source Assember AVRA

• AVRfreaks

• OpenAVR

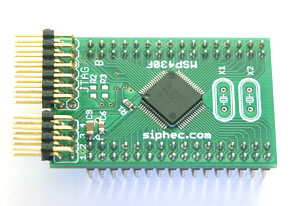

MSP430F MICROCONTROLLER:

Ultra Low Power 16bit Microcontroller (+1.8 to +3.6 Volt)

• super thin board
• full motherboard for MSP430F devices
• with MSP430F148  (other devices possible)
• all pins are all available on headers
• high computing power
• easy to use: just connect to power supply (+1.8 to +3.6V) and program device
• possible equipment with 3 different clocks X1, X2, X3
• JTAG header
• versions with
  MSP430F148, MSP430F149,
  MSP430F155, MSP430F156, MSP430F157,
  MSP430F168, MSP430F169


• programming:
     free kickstart software at TI's web page: www.ti.com/sc/msp430

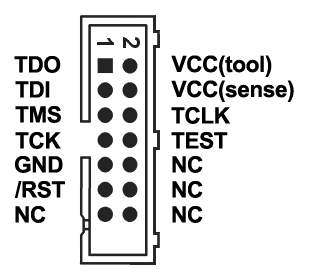

MSP-JTAG (Programmer)

MSP JTAG Device for MSP430 Microcontroller

• used for programming / configuration of TI MSP430 microcontroller

• MSP-JTAG has an 3.0 Volt regulated output (VCCtool) supplied from parallel port (LPT), which can be used to power target device (15mA).
  This is sufficient because MSP430 microcontroller only require 3-5mA.
• If target device has it own supply, connect this supply to VCCsense. Then output voltages of JTAG lines follow target device voltage.

CYPRESS MICROCONTROLLER:

• Software: 8051 code runs from:
  — Internal RAM, which is downloaded via USB
  — Internal RAM, which is loaded from EEPROM
  — External memory device (128 pin package)
• 16 KBytes of on-chip Code/Data RAM
• Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints
  — Buffering options: double, triple, and quad
• Additional programmable (BULK/INTERRUPT) 64-byte endpoint
• 8- or 16-bit external data interface
• Integrated, industry-standard enhanced 8051
  — 48-MHz, 24-MHz, or 12-MHz CPU operation
  — Four clocks per instruction cycle
  — Two USARTS
  — Three counter/timers
  — Expanded interrupt system
  — Two data pointers
• 3.3V operation with 5V tolerant inputs
• GPIF (General Programmable Interface)
  — Allows direct connection to most parallel interface
  — Programmable waveform descriptors and configuration registers to define waveforms
  — Supports multiple Ready (RDY) inputs and Control (CTL) outputs
• Vectored USB interrupts and GPIF/FIFO interrupts
• Separate data buffers for the Set-up and Data portions of a CONTROL transfer
• Integrated I2C controller, runs at 100 or 400 kHz
• Four integrated FIFOs
  — Integrated glue logic and FIFOs lower system cost
  — Automatic conversion to and from 16-bit buses
  — Master or slave operation
  — Uses external clock or asynchronous strobes
  — Easy interface to ASIC and DSP ICs

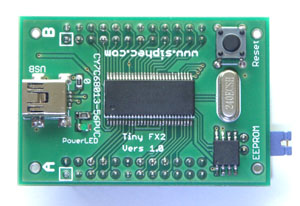

FX2 / FX2LP TinyBoard

Cypress CY7C68013A - 56 Development Board with USB2 HighSpeed MiniUSB

• Cypress CY7C68013A-56PVXC - low power Version of CY7C68013-56, full USB2 specified
• tiny board, board dimesions 3,5cm x 5,1cm
• USB2 High Speed (480Mbit/s)
• Mini USB
• EEPROM onboard
• onboard voltage regulator (bottom side)
• GPIF Interface
• reset push button
• power led


• fully assembled board comes with MiniUSB-Cable and schematic


• female connectors 2x (2x12 pins) also available

email for more information

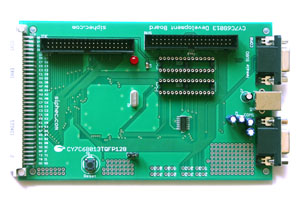

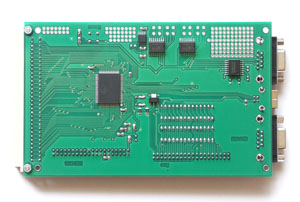

FX2 / FX2LP Development Board

Cypress CY7C68013A - 128 Development Board with USB2 HighSpeed

• Cypress CY7C68013A-128AXC - low power version of  CY7C68013-128
• USB2 High Speed (480Mbit/s)
• EEPROM onboard
• 2 serial interfaces
• all pins out, ERNI-header
• IDE interface
• ERNI connector
• memory extention with maximum addressable memory
  - 64 KB external SRAM with 15ns (memory included)
• 2x I²C PortIO Expander (2x 8 = 16 additional ports)
• reset push button

• board dimensions: full Euro PCB (160cm x 100cm)

• fully assembled board comes with USB-Cable and schematic

email for more information

• development tools supplied by www.cypress.com
     CY3681 EZ-USB FX2 Development Kit

Free available development environment and sources from Cypress:

• cy3684_ez_usb_fx2lp_development_kit_10.zip
• cy3684_ez_usb_fx2lp_development_kit_11.zip
• cy3684_ez_usb_fx2lp_development_kit_13.zip
• windows_mass_storage_driver_v_6_01_9.zip
• and more

Compiler:

• Free Keil C-Compiler

• USB to IDE (USB2IDE, USB2ATA)
• USB to Compact Flash Card (USB2CFCard)

Tools:

• USBView
