FT245 TinyBoard:

FT245 TinyBoard, Univseral USB Controller with FT245BM or FT245BL



FT245 TinyBoard, Development Board, FT245BM, FT245BL Board

  • Universal USB1.1 / USB2.0 (Full Speed) Controller for mircocontrollers
  • easy to use parallel interface (8bit interface), optimized for microcontrollers
  • EEPROM onboard
  • MiniUSB connector
  • fits in 20 pin  DIP sockel



HARDWARE FEATURES of FT245BM / FT245BL:

  • Single Chip USB to Parallel FIFO bi-directional Data Transfer
  • Transfer Data rate to 1MByte / sec - D2XX Drivers
  • Simple to interface to MCU / PLD/ FPGA logic with a 4 wire handshake interface
  • Entire USB protocol handled on-chip, no USB-specific firmware programming required
  • FTDI’s royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases
  • 384 Byte FIFO Tx buffer / 128 Byte FIFO Rx Buffer for high data throughput.
  • Integrated 6MHz – 48Mhz clock multiplier PLL
  • USB Bulk or Isochronous data transfer modes
  • USB 1.1 and USB 2.0 compatible
  • USB VID, PID , Serial Number and Product Description strings in external EEPROM
  • EEPROM programmable on-board via USB

Development Tools:

Drivers supplied by FTDI for Windows 98 / XP / ME / 2000 and Linux

  • VCP (Virtual COM port) driver:
    adds a virtual COM port to the operation system when FT245 TinyBoard is plugged to USB
  • D2XX driver:
      allows high speed data transfer up to 1MByte / sec via DLL user interface

For sample programs using D2XX DLL visit FTDI homepage.

Application:





DDR DIMM Board:

DDR DIMM Board

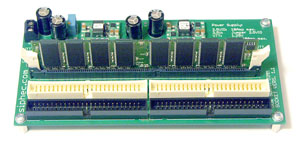

DDR DIMM Board, DDR-SDRAM Board


  • High Speed DDR Board with 2 GB DDR DIMM RAM support (DDR-SDRAM, DDR1)
  • integrated switching power regulator (4.5 to 5.5 Vin)
  • onboard active termination
  • tuning of 2.5V DIMM supply voltage possible

Application:




Universal Compact Flash Card Adapter:

Universal Compact Flash Card Adapter with IDE and Universal connector

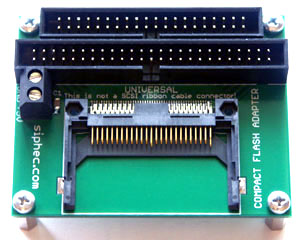

Compact Flash Card Adapter, CF-Card, CF to IDE
  • Compact Flash Card Adapter with IDE and Universal connector
  • IDE connector (40pins): works as IDE device
  • Universal connector (50pins): universal mode, all other modi are possible
  • simple 5 Volt Supply
  • target applications are embedded systems
    supply mircocontrollers with a flash (hard) disk as large storage for data

Application:
